An idler sprocket is a crucial component in chain drive systems, designed to guide, tension, or support chains without transmitting power to other elements. Unlike drive sprockets, which are connected to power sources, idler sprockets help maintain optimal chain performance by reducing slack, minimizing wear, and ensuring smooth operation. They are commonly used in industrial machinery, automotive engines, agricultural equipment, and conveyor systems. By providing precise chain alignment and reducing vibration, idler sprockets enhance the efficiency and longevity of the entire drive system. Their design varies based on application, with options including plain bore, finished bore, or those with built-in bearings for ease of installation and maintenance.
Our idler sprockets are engineered with precision to meet high industry standards, ensuring durability, reliability, and performance. Below is a list of key features:
Our idler sprockets come in a range of sizes and specifications to fit diverse industrial needs. The table below outlines common parameters:
| Parameter | Description | Available Options |
|---|---|---|
| Pitch | The distance between chain roller centers | 1/4", 3/8", 1/2", 5/8", 3/4", 1", etc. |
| Number of Teeth | Total teeth on the sprocket | 10T to 60T (standard), custom sizes available |
| Bore Diameter | Inner hole size for shaft mounting | 1/4" to 2" (standard), customizable upon request |
| Material | Construction material | Steel, stainless steel, nylon, aluminum |

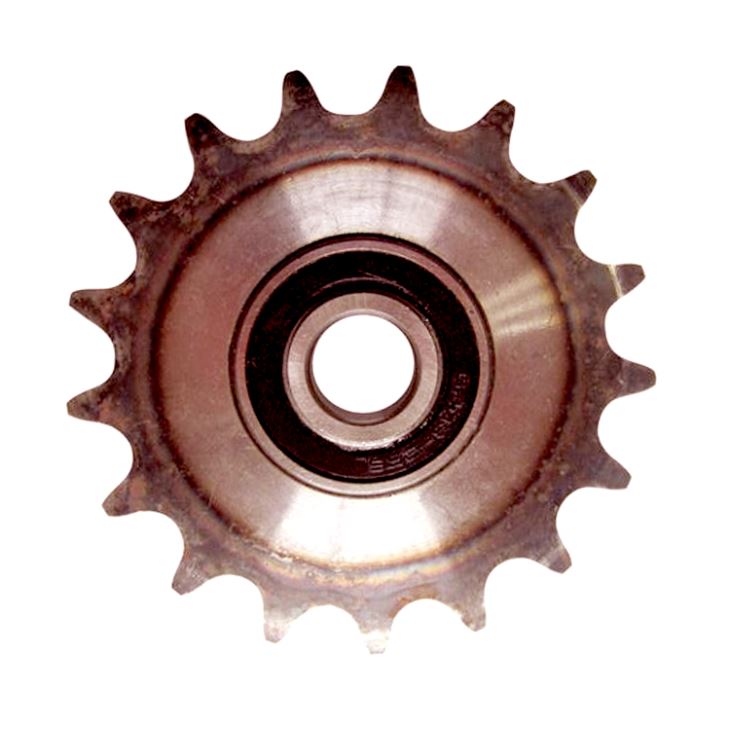

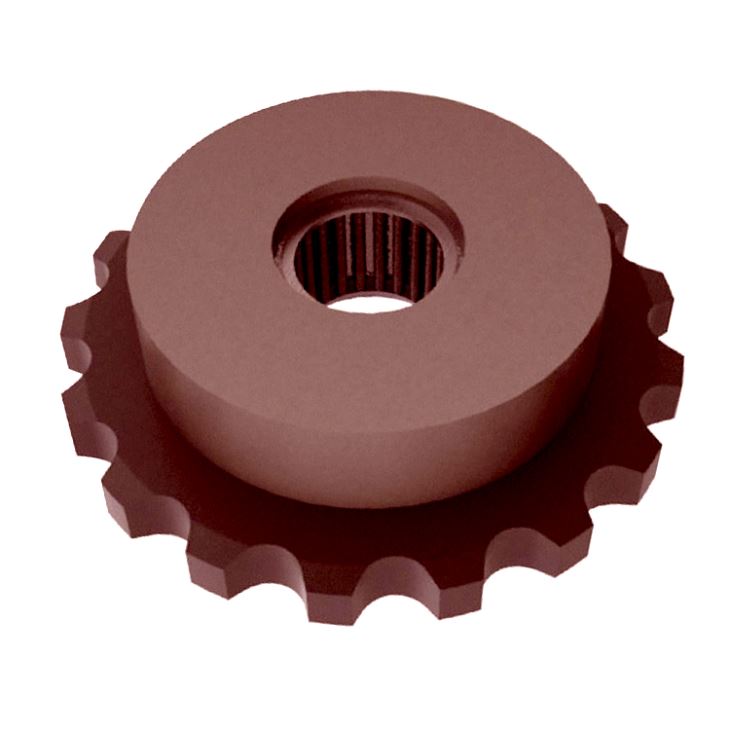

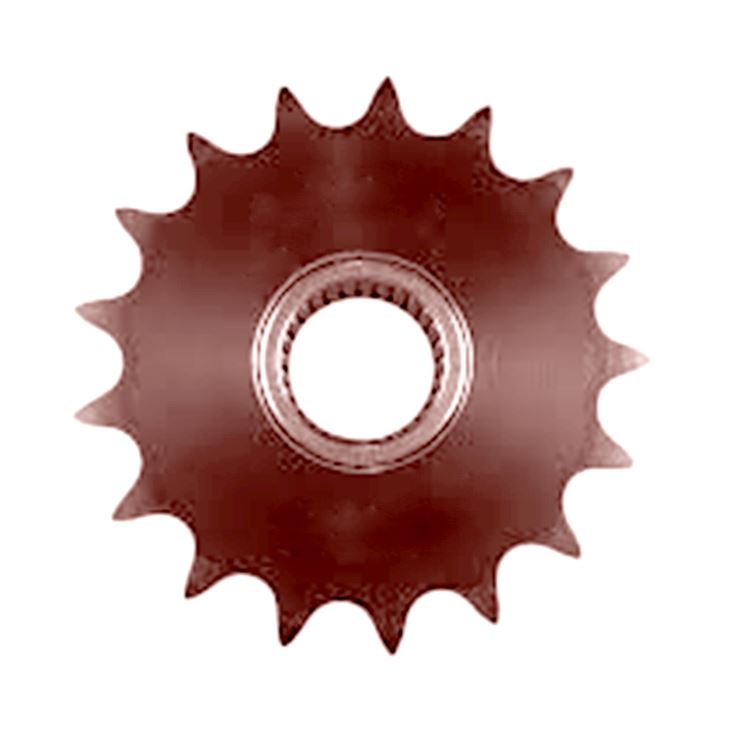

| Bearing Type | Internal bearing mechanism | Ball bearing, bronze bushing, needle roller, plain bore |
| Load Capacity | Maximum operational load | Up to 5000 N (varies with size and material) |
| Temperature Range | Operating temperature limits | -40°C to 150°C (depending on material) |
Idler sprockets are versatile components used across various industries to improve chain drive performance. Common applications include:
What is the primary function of an idler sprocket?
The primary function is to guide, tension, or support a chain in a drive system without transmitting power, thereby reducing slack, improving alignment, and extending chain life.
How do I choose the right idler sprocket for my application?
Consider factors such as chain pitch, number of teeth, bore size, material compatibility, load capacity, and environmental conditions. Refer to our technical specifications table or consult with our engineers for customized recommendations.
Can idler sprockets be used with any type of chain?
Yes, but they must match the chain's pitch and roller diameter for proper engagement. Common chains include roller chains, silent chains, and leaf chains. Always verify compatibility to avoid premature wear.
What maintenance is required for idler sprockets?
Regular inspection for wear, proper lubrication (if not self-lubricating), and ensuring correct tension are key. Replace sprockets if teeth show significant wear or damage to prevent chain failure.
Are there idler sprockets for high-temperature environments?
Yes, we offer sprockets made from heat-resistant materials like stainless steel or specially coated metals, capable of operating in temperatures up to 150°C or higher with custom options.
How does an idler sprocket differ from a drive sprocket?
A drive sprocket is connected to a power source and transmits motion, while an idler sprocket is passive, used only for guidance and tensioning. Idler sprockets often have bearings to rotate freely without power transfer.
What are the signs of a failing idler sprocket?
Common signs include unusual noise (e.g., grinding or clicking), visible wear on teeth, chain slippage, increased vibration, or misalignment. Prompt replacement is recommended to avoid system downtime.
Can I customize an idler sprocket for a specific shaft size?
Absolutely. We provide custom bore sizes, keyways, and hub designs to fit unique shaft dimensions. Contact our support team with your requirements for a tailored solution.
Do idler sprockets come with warranties?
Yes, our products typically include a standard warranty against manufacturing defects, covering periods from 1 to 5 years based on the product type and application. Refer to our warranty policy for details.
How do I install an idler sprocket correctly?
Ensure the shaft is clean and aligned, mount the sprocket securely using appropriate fasteners (e.g., set screws or keys), and check chain tension. Follow manufacturer guidelines or use our installation tutorials for best results.
