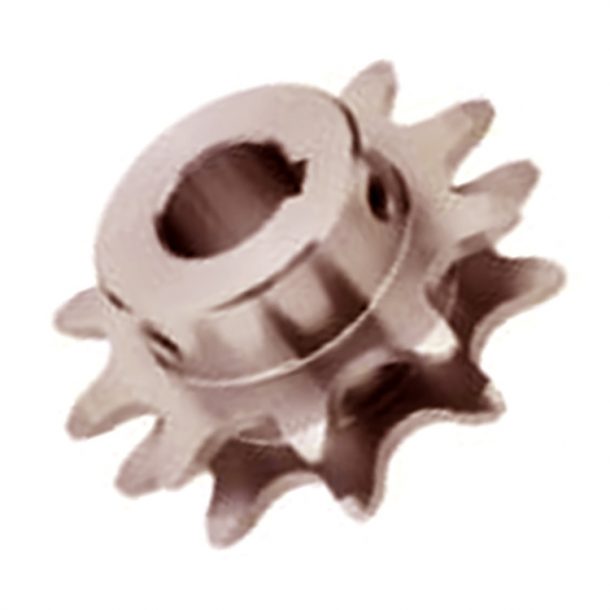

conveyor chain sprocket
These sprockets come machined to the shaft diameter size listed and are machinable up to the maximum shaft diameter size. All have hardened teeth for increased wear resistance and a long service life.
We manufacture all standard roller transmission chain sprockets and have strong processing capacity for custom design & production
| Number of Teeth | Shaft Bore Dia. | Dp | Do | T | H | L | ℓ | A | |
| H (DH7) | N (DH7) | ||||||||
| 9 | 15 20 | 15 20 | 55.7 | 63 | 3 | 33 | 22 | 4 | 15.3 |
| 10 | 15 20 | 15 20 | 61.65 | 68 | 3 | 37 | 25 | 5 | 15.3 |
| 10 | 20 25 | 20 25 | 82.2 | 93 | 4 | 52 | 40 | 8 | 21.5 |
| 10 | 25 30 | 25 30 | 102.75 | 117 | 5 | 66 | 45 | 9 | 27 |
