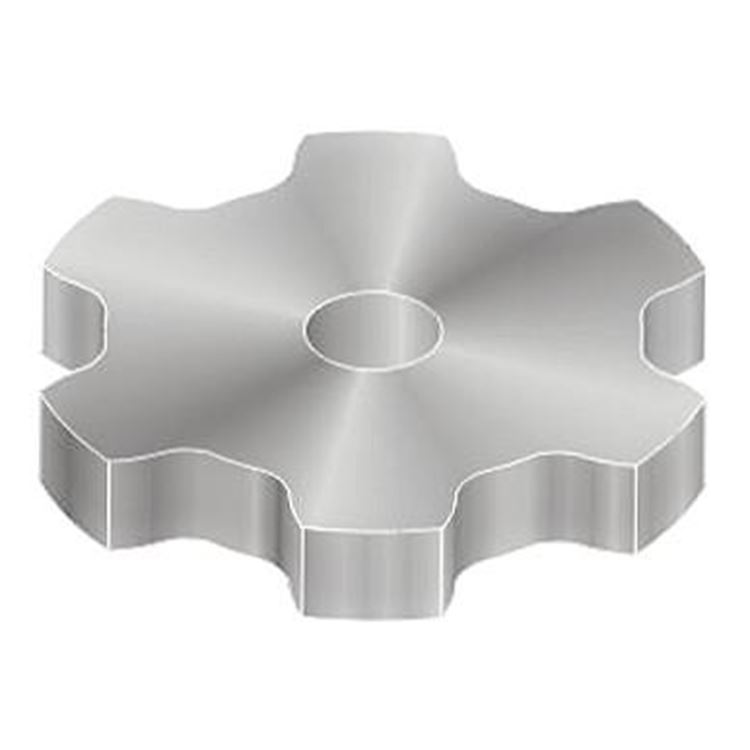

Flame Cut Sprockets

Stock sprockets may also be used with the following chains or others having the same pitch, barrel diameter and width; however all may not clear standard hub on 6 and 7 tooth sprockets due to variations in side bars.

Send Inquiry

Product Description

Flame Cut Sprockets

Type A – 1.654″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
12	15400012	62A12	6.39	15/16	2 3/4
13	15400013	62A13	6.91	15/16	3 1/4
14	15400014	62A14	7.43	15/16	3 1/4
15	15400015	62A15	7.96	15/16	3 3/4
17	15400017	62A17	9	15/16	3 1/4
19	15400019	62A19	10.05	15/16	3 1/4
20	15400020	62A20	10.57	15/16	3 1/4
24	15400024	62A24	12.67	1 1/4	3 3/4
26	15400026	62A26	13.72	1 1/4	3 3/4
30	15400030	62A30	15.82	1 1/4	3 3/4
36	15400036	62A36	18.98	1 1/4	3 3/4
54	15400054	62A54	28.45	1 1/4	3 3/4
60	15400060	62A60	31.6	1 1/4	3 3/4

Type A – 2.609″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
8	15400108	78A8	6.82	15/16	3 1/4
9	15400109	78A9	7.63	1 1/4	3 7/16
10	15400110	78A10	8.44	1 1/4	3 7/16
11	15400111	78A11	9.26	1 1/4	3 7/16
12	15400112	78A12	10.08	1 1/4	3 7/16
13	15400113	78A13	10.9	1 1/4	3 3/4
14	15400114	78A14	11.72	1 1/4	3 3/4
15	15400115	78A15	12.55	1 1/2	3 3/4
17	15400117	78A17	14.2	1 1/2	3 3/4
19	15400119	78A19	15.85	1 1/2	4 1/2
21	15400121	78A21	17.51	1 1/2	4 1/2
24	15400124	78A24	19.99	1 1/2	4 1/2
25	15400125	78A25	20.82	1 1/2	4 1/2
28	15400128	78A28	23.31	1 1/2	4 1/2
30	15400130	78A30	24.96	1 1/2	4 1/2
35	15400135	78A35	29.11	1 1/2	4 1/2
40	15400140	78A40	33.25	1 1/2	4 15/16
42	15400142	78A42	34.91	1 1/2	4 15/16
46	15400146	78A46	38.31	1 1/2	4 15/16
54	15400154	78A54	44.87	1 1/2	4 15/16
60	15400160	78A60	49.85	1 1/2	4 15/16

Type A – 3.067″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
10	15400210	1568A10	9.92	1 1/2	3 3/4
12	15400212	1568A12	11.85	1 1/2	3 3/4
14	15400214	1568A14	13.78	1 1/2	3 3/4
30	15400230	1568A30	29.34	1 1/2	4 1/2
36	15400236	1568A36	35.19	1 1/2	5 3/8
42	15400242	1568A42	41.04	1 1/2	5 1/2
48	15400248	1568A48	46.89	1 1/2	5 1/2

Type A – 3.075″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
8	15400308	1030A8	8.05	1 1/4	3 1/4
9	15400309	1030A9	8.99	1 1/4	3 1/4
10	15400310	1030A10	9.95	1 1/4	3 1/4
11	15400311	1030A11	10.91	1 1/2	3 3/4
12	15400312	1030A12	11.88	1 1/2	3 3/4
13	15400313	1030A13	12.85	1 1/2	3 3/4
15	15400315	1030A15	14.79	1 1/2	4
17	15400317	1030A17	16.73	1 1/2	4
19	15400319	1030A19	18.68	1 1/2	4 1/2
21	15400321	1030A21	20.63	1 1/2	4 1/2
24	15400324	1030A24	23.56	1 1/2	4 1/2
25	15400325	1030A25	24.53	1 1/2	5 3/8
28	15400328	1030A28	27.46	1 1/2	5 3/8
30	15400330	1030A30	29.42	1 1/2	5 3/8
35	15400335	1030A35	34.3	1 1/2	5 1/2
40	15400340	1030A40	39.19	1 1/2	5 1/2
42	15400342	1030A42	41.15	1 1/2	5 1/2
48	15400348	1030A48	47.03	1 1/2	6 1/2
54	15400354	1030A54	52.89	1 1/2	6 1/2
60	15400360	1030A60	58.75	1 1/2	7

Type A – 3.075″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
7	15400407	82A7	7.09	1 3/16	2 15/16
8	15400408	82A8	8.04	1 1/4	3 3/4
9	15400409	82A9	8.99	1 1/4	3 3/4
10	15400410	82A10	9.95	1 1/4	3 3/4
11	15400411	82A11	10.91	1 1/4	3 15/16
12	15400412	82A12	11.88	1 1/4	3 15/16
13	15400413	82A13	12.85	1 1/4	3 15/16
14	15400414	82A14	13.85	1 1/4	3 15/16
15	15400415	82A15	14.79	1 1/2	4 1/2
16	15400416	82A16	15.76	1 1/2	4 1/2
17	15400417	82A17	16.73	1 1/2	4 1/2
18	15400418	82A18	17.71	1 1/2	4 1/2

Type A – 3.500″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
10	15400510	238A10	11.33	1 1/2	3 3/4
12	15400512	238A12	13.52	1 1/2	3 3/4
14	15400514	238A14	15.73	1 1/2	3 3/4
30	15400530	238A30	33.48	1 1/2	4
36	15400536	238A36	40.16	1 1/2	4
42	15400542	238A42	46.84	1 1/2	5 1/2
48	15400548	238A48	53.52	1 1/2	5 1/2

Type A – 4.000″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
6	15400606	124A6	8	15/16	3 1/4
7	15400607	124A7	9.22	1	3 15/16
8	15400608	124A8	10.45	1	3 15/16
9	15400609	124A9	11.7	1	3 15/16
10	15400610	124A10	12.94	1	3 15/16
11	15400611	124A11	14.2	1 1/2	4 1/4
12	15400612	124A12	15.45	1 1/2	4 1/4
13	15400613	124A13	16.72	1 1/2	4 1/4
14	15400614	124A14	17.98	1 1/2	4 1/4
15	15400615	124A15	19.24	1 1/2	4 3/8
16	15400616	124A16	20.5	1 1/2	4 3/8

Type A – 4.063″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
6	15400706	1240A6	8.13	15/16	2 1/2
7	15400707	1240A7	9.36	1 1/4	3 3/4
8	15400708	1240A8	10.62	1 1/2	4 1/2
9	15400709	1240A9	11.88	1 1/2	4 1/2
10	15400710	1240A10	13.15	1 1/2	4 1/2
11	15400711	1240A11	14.42	1 1/2	4 1/2
12	15400712	1240A12	15.7	1 1/2	5 1/4
13	15400713	1240A13	16.98	1 1/2	5 1/4
14	15400714	1240A14	18.26	1 1/2	5 1/4
15	15400715	1240A15	19.54	1 1/2	5 1/4
16	15400716	1240A16	20.83	1 1/2	5 1/2
18	15400718	1240A18	23.4	1 1/2	5 1/2
20	15400720	1240A20	25.97	1 1/2	5 1/2
21	15400721	1240A21	27.26	1 1/2	5 1/2
24	15400724	1240A24	31.12	1 1/2	5 1/2
25	15400725	1240A25	33.42	1 1/2	6
28	15400728	1240A28	36.29	1 1/2	6
30	15400730	1240A30	38.87	1 1/2	7
35	15400735	1240A35	45.33	1 1/2	7
40	15400740	1240A40	51.78	1 1/2	7 1/2
48	15400748	1240A48	62.12	1 1/2	7 1/2

Type A – 4.500″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
10	15400810	635A10	14.56	1 1/2	4
12	15400812	635A12	17.39	1 1/2	4
14	15400814	635A14	20.22	1 1/2	4
30	15400830	635A30	43.05	1 1/2	5 3/8
36	15400836	635A36	51.63	1 1/2	5 3/8
42	15400842	635A42	60.22	1 1/2	6 1/2
48	15400848	635A48	68.81	1 1/2	7 1/2

Type A – 5.000″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
10	15400910	1207A10	16.18	1 1/2	4 1/2
12	15400912	1207A12	19.32	1 1/2	4 1/2
14	15400914	1207A14	22.47	1 1/2	5 3/8
30	15400930	1207A30	47.84	1 1/2	6
36	15400936	1207A36	57.37	1 1/2	7
42	15400942	1207A42	66.91	1 1/2	7
48	15400948	1207A48	76.45	1 1/2	7 1/2

Type A – 6.050″ Pitch

No. of	Stock	Sprocket	Pitch	Stock	Max. Bore
Teeth	Number	Number	Dia.	Bore	Max. Bore
6	15401906	132A6	12.1	1 1/2	4 1/2
7	15401907	132A7	13.95	1 1/2	4 1/2
8	15401908	132A8	15.81	1 1/2	4 1/2
9	15401909	132A9	17.69	1 1/2	5 3/8
10	15401910	132A10	19.58	1 1/2	5 3/8
11	15401911	132A11	21.47	1 1/2	5 3/8
12	15401912	132A12	23.38	1 1/2	5 3/8
