Product Description

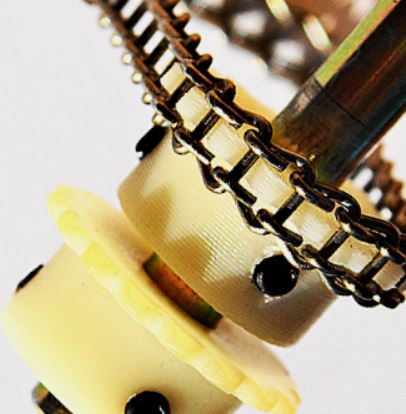

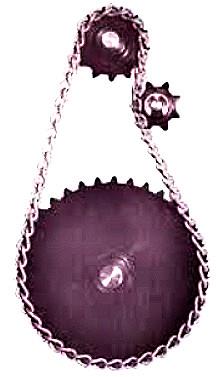

Ladder Sprockets

Ladder sprockets are used for low torque power transmission.We're professional ladder sprockets manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable ladder sprockets made in China here from our factory.

Ladder sprockets ( in inch)

Ladder Sprockets

For metric size please send us inquire!

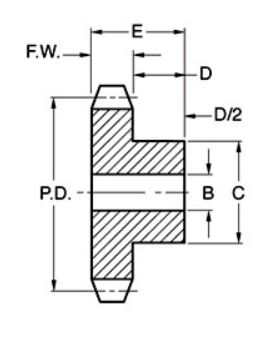

Pitch	# Grooves( Teeth )	Material	Material Type	Bore Config.	Bore Size (Inch)	Face Width (F.W.) (Inch)	Overall Width (E) (Inch)	Pitch Dia. (P.D.) (Inch)	Hub Dia. (C) (Inch)
0.353 (SIZE 17)	6	Metal	Brass	Plain - With Set Screw	0.188	0.17	0.438	0.7	0.438
0.353 (SIZE 17)	7	Metal	Brass	Plain - With Set Screw	0.188	0.17	0.438	0.8	0.5
0.353 (SIZE 17)	9	Metal	Brass	Plain - With Set Screw	0.188	0.17	0.5	1.02	0.563
0.353 (SIZE 17)	12	Metal	Brass	Plain - With Set Screw	0.25	0.17	0.5	1.35	0.625
0.353 (SIZE 17)	16	Metal	Brass	Plain - With Set Screw	0.25	0.17	0.5	1.78	0.625
0.353 (SIZE 17)	22	Metal	Brass	Plain - With Set Screw	0.313	0.17	0.563	2.45	0.75
0.353 (SIZE 17)	24	Metal	Brass	Plain - With Set Screw	0.313	0.17	0.563	2.66	0.75
0.353 (SIZE 17)	27	Metal	Brass	Plain - With Set Screw	0.313	0.17	0.563	3	0.75
0.286 (SIZE 18)	6	Metal	Brass	Plain - With Set Screw	0.188	0.12	0.375	0.57	0.375
0.286 (SIZE 18)	8	Metal	Brass	Plain - With Set Screw	0.188	0.12	0.375	0.75	0.438
0.286 (SIZE 18)	9	Metal	Brass	Plain - With Set Screw	0.188	0.12	0.375	0.83	0.438
0.286 (SIZE 18)	10	Metal	Brass	Plain - With Set Screw	0.188	0.12	0.375	0.92	0.5
0.286 (SIZE 18)	11	Metal	Brass	Plain - With Set Screw	0.188	0.12	0.375	1.02	0.5
0.286 (SIZE 18)	12	Metal	Brass	Plain - With Set Screw	0.188	0.12	0.375	1.1	0.5
0.286 (SIZE 18)	14	Metal	Brass	Plain - With Set Screw	0.25	0.12	0.438	1.28	0.625
0.286 (SIZE 18)	16	Metal	Brass	Plain - With Set Screw	0.25	0.12	0.438	1.47	0.625
0.286 (SIZE 18)	18	Metal	Brass	Plain - With Set Screw	0.25	0.12	0.438	1.64	0.625
0.286 (SIZE 18)	20	Metal	Brass	Plain - With Set Screw	0.25	0.12	0.438	1.82	0.625
0.286 (SIZE 18)	24	Metal	Brass	Plain - With Set Screw	0.313	0.12	0.5	2.18	0.75
0.286 (SIZE 18)	27	Metal	Brass	Plain - With Set Screw	0.313	0.12	0.5	2.47	0.75
0.185 (SIZE 19)	6	Metal	Brass	Plain - With Set Screw	0.125	0.087	0.344	0.36	0.25
0.185 (SIZE 19)	7	Metal	Brass	Plain - With Set Screw	0.125	0.087	0.344	0.41	0.25
0.185 (SIZE 19)	8	Metal	Brass	Plain - With Set Screw	0.125	0.087	0.344	0.47	0.313
0.185 (SIZE 19)	9	Metal	Brass	Plain - With Set Screw	0.125	0.087	0.344	0.53	0.375
0.185 (SIZE 19)	10	Metal	Brass	Plain - With Set Screw	0.125	0.087	0.344	0.59	0.375
0.185 (SIZE 19)	12	Metal	Brass	Plain - With Set Screw	0.188	0.087	0.344	0.7	0.438
0.185 (SIZE 19)	15	Metal	Brass	Plain - With Set Screw	0.188	0.087	0.344	0.87	0.5
0.185 (SIZE 19)	16	Metal	Brass	Plain - With Set Screw	0.188	0.087	0.344	0.93	0.5
0.185 (SIZE 19)	18	Metal	Brass	Plain - With Set Screw	0.188	0.087	0.344	1.06	0.5
0.185 (SIZE 19)	20	Metal	Brass	Plain - With Set Screw	0.188	0.087	0.344	1.16	0.5
0.185 (SIZE 19)	24	Metal	Brass	Plain - With Set Screw	0.188	0.087	0.344	1.38	0.5
0.185 (SIZE 19)	32	Metal	Brass	Plain - With Set Screw	0.25	0.087	0.406	1.86	0.625
0.185 (SIZE 19)	36	Metal	Brass	Plain - With Set Screw	0.313	0.087	0.406	2.12	0.688
0.185 (SIZE 19)	48	Metal	Brass	Plain - With Set Screw	0.313	0.087	0.406	2.78	0.688
0.185 (SIZE 19)	60	Metal	Brass	Plain - With Set Screw	0.313	0.087	0.406	3.48	0.688
0.185 (SIZE 19)	72	Metal	Cast Brass	Plain - With Set Screw	0.313	0.087	0.406	4.21	0.688
0.353 (SIZE 14)	12	Plastic	Acetal, Black	Brass Insert & Set Screw	0.188	0.17	0.57	1.364	0.62
0.353 (SIZE 14)	12	Plastic	Acetal, Black	Brass Insert & Set Screw	0.25	0.17	0.57	1.364	0.62
0.353 (SIZE 14)	13	Plastic	Acetal, Black	Brass Insert & Set Screw	0.188	0.17	0.57	1.475	0.62
0.353 (SIZE 14)	13	Plastic	Acetal, Black	Brass Insert & Set Screw	0.25	0.17	0.57	1.475	0.62
0.353 (SIZE 14)	14	Plastic	Acetal, Black	Brass Insert & Set Screw	0.188	0.17	0.57	1.586	0.62
0.353 (SIZE 14)	14	Plastic	Acetal, Black	Brass Insert & Set Screw	0.25	0.17	0.57	1.586	0.62
0.353 (SIZE 14)	15	Plastic	Acetal, Black	Brass Insert & Set Screw	0.25	0.17	0.57	1.698	0.62
0.353 (SIZE 14)	15	Plastic	Acetal, Black	Brass Insert & Set Screw	0.313	0.17	0.57	1.698	0.75
0.353 (SIZE 14)	16	Plastic	Acetal, Black	Brass Insert & Set Screw	0.25	0.17	0.57	1.809	0.62
0.353 (SIZE 14)	16	Plastic	Acetal, Black	Brass Insert & Set Screw	0.313	0.17	0.57	1.809	0.75
0.353 (SIZE 14)	18	Plastic	Acetal, Black	Brass Insert & Set Screw	0.313	0.17	0.57	2.033	0.75
0.353 (SIZE 14)	20	Plastic	Acetal, Black	Brass Insert & Set Screw	0.313	0.17	0.57	2.257	0.75
0.353 (SIZE 14)	22	Plastic	Acetal, Black	Brass Insert & Set Screw	0.313	0.17	0.57	2.48	0.75
0.353 (SIZE 14)	24	Plastic	Acetal, Black	Brass Insert & Set Screw	0.313	0.17	0.57	2.704	0.75
