Metric Sprockets

Since 1992 XL is a major player in the production and distribution of power transmission components. Sprockets and platewheels represent the core of this business. has passed all tests laid down by ISO 9001 and all the products are according to din regulations, such as DIN 8187; DIN 8188; ISO/R 606 and ANSI B 29.1. Here following the complete range of sprockets and platewheels divided by different pitch.

Send Inquiry

Product Description

metric sprockets

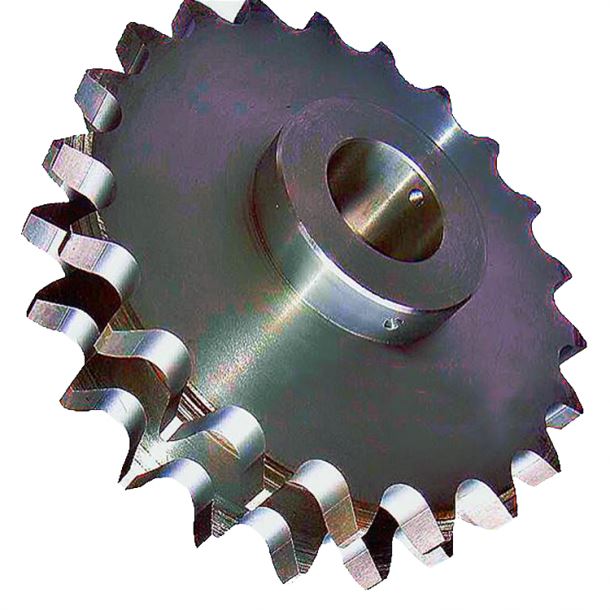

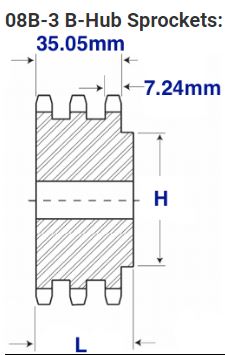

08B-3 METRIC ROLLER CHAIN SPROCKETS

08B-3 roller chain sprockets are manufactured for metric 08B-3 roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufactures, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. The below charts show our standard sizes for 08B-3 sprockets.

Power transmission chains and sprockets work together in a chain drive system to convert the electrical energy generated by a motor to mechanical energy used to power conveyors and other industrial machinery. Idler sprockets are used to take up slack in long chains or in applications with high vibration, such as robotic arms and conveyors. Roller chains are used for horizontal and vertical applications. Leaf chains are designed for lifting applications. Chain links are used to extend the length of a chain or replace worn or damaged links. Clevis connectors are used to anchor the end of a loaf chain to a clevis.

Metric Sprockets

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Bore	Hub Diameter (H)	Length Thru Bore (L)	Sprocket Weight (kg)
E08B11	11	45.08mm	14mm	22mm	30mm	50mm	0.32
E08B12	12	49.07mm	14mm	24mm	34mm	50mm	0.45
E08B13	13	53.06mm	14mm	25mm	38mm	50mm	0.59
E08B14	14	57.07mm	14mm	28mm	42mm	50mm	0.72
E08B15	15	61.08mm	14mm	31mm	46mm	50mm	0.81
E08B16	16	65.10mm	16mm	35mm	50mm	50mm	0.9
E08B17	17	69.12mm	16mm	36mm	54mm	50mm	1.04
E08B18	18	73.14mm	16mm	38mm	58mm	50mm	1.22
E08B19	19	77.16mm	16mm	40mm	62mm	50mm	1.41
E08B20	20	81.18mm	16mm	40mm	66mm	50mm	1.58
E08B21	21	85.21mm	20mm	45mm	70mm	55mm	1.81
E08B22	22	89.24mm	20mm	45mm	70mm	55mm	2.03
E08B23	23	93.27mm	20mm	45mm	70mm	55mm	2.27
E08B24	24	97.30mm	20mm	50mm	75mm	55mm	2.44
E08B25	25	101.33mm	20mm	52mm	80mm	55mm	2.54
E08B26	26	105.36mm	20mm	56mm	85mm	55mm	2.85
E08B27	27	109.40mm	20mm	56mm	85mm	55mm	2.85
E08B28	28	113.43mm	20mm	60mm	90mm	55mm	3.16
E08B29	29	117.46mm	20mm	62mm	95mm	55mm	3.34
E08B30	30	121.50mm	20mm	64mm	100mm	55mm	3.48
E08B35	35	141.68mm	20mm	73mm	110mm	55mm	4.79
E08B36	36	145.72mm	25mm	80mm	120mm	55mm	5.43
E08B38	38	153.79mm	25mm	80mm	120mm	60mm	6.49
E08B42	42	169.94mm	25mm	80mm	120mm	60mm	7.17
E08B45	45	182.06mm	25mm	80mm	120mm	60mm	7.69
E08B48	48	194.18mm	25mm	80mm	120mm	60mm	8.2
E08B52	52	210.34mm	25mm	80mm	120mm	60mm	8.88
E08B54	54	218.43mm	25mm	80mm	120mm	60mm	9.22
E08B57	57	230.54mm	25mm	80mm	120mm	60mm	12.62
E08B60	60	242.66mm	25mm	85mm	130mm	65mm	13.84
E08B68	68	274.99mm	25mm	85mm	130mm	65mm	15.69
E08B72	72	291.15mm	25mm	85mm	130mm	65mm	16.61
E08B76	76	307.32mm	30mm	85mm	130mm	65mm	22.23
E08B84	84	339.65mm	30mm	85mm	130mm	65mm	24.57
E08B95	95	384.11mm	30mm	85mm	130mm	65mm	33.11
E08B114	114	460.91mm	30mm	85mm	130mm	65mm	41.9

06B DOUBLE SINGLE SPROCKETS

Metric Sprockets

Sprocket Size	Tooth Count	Outside Diameter	Pitch Diameter	Minimum Bore	Max. Recommended Bore	(L)	(C)	(E)	(F)	Weight (kg)
DS06A14	14	46.3	42.8	10	20	23.5	18.17	31	5.31	0.17
DS06A15	15	49.3	45.81	10	23	23.5	18.17	34	5.31	0.2
DS06A16	16	52.3	48.82	10	25	23.5	18.17	37	5.31	0.23
DS06A17	17	55.3	51.83	10	27	23.5	18.17	40	5.31	0.27
DS06A18	18	58.3	54.85	10	29	23.5	18.17	43	5.31	0.3
DS06A19	19	61.3	57.87	10	31	23.5	18.17	46	5.31	0.35
DS06A20	20	64.3	60.89	10	33	23.5	18.17	48	5.31	0.39
DS06A21	21	68	63.91	10	35	23.5	18.17	52	5.31	0.44
DS06A22	22	71	66.93	12	36	23.5	18.17	55	5.31	0.5
DS06A23	23	73.5	69.95	12	38	23.5	18.17	58	5.31	0.55
DS06A24	24	77	72.97	12	40	23.5	18.17	61	5.31	0.61
DS06A25	25	80	76.02	12	43	23.5	18.17	64	5.31	0.67

Metric Sprockets

Sprocket Size	Tooth Count	Bushing Size	Outside Diameter	Pitch Diameter	Minimum Bore	Maximum Bore	(L1)	(C)	(E)	(L2)	(F)	Weight (kg)
DS06ATB18H	18	1008	58.3	54.85	9	25	23.5	18.17	43	22.2	5.31	0.19
DS06ATB19H	19	1008	61.3	57.87	9	25	23.5	18.17	46	22.2	5.31	0.23
DS06ATB20H	20	1108	64.3	60.89	9	28	23.5	18.17	48	22.2	5.31	0.25
DS06ATB21H	21	1108	68	63.91	9	28	23.5	18.17	52	22.2	5.31	0.31
DS06ATB22H	22	1108	71	66.93	9	28	23.5	18.17	55	22.2	5.31	0.36
DS06ATB23H	24	1108	73.5	69.95	9	28	23.5	18.17	58	22.2	5.31	0.41
DS06ATB24H	24	1108	77	72.97	9	28	23.5	18.17	61	22.2	5.31	0.47
DS06ATB25H	25	1108	80	76.02	9	28	23.5	18.17	64	22.2	5.31	0.53
