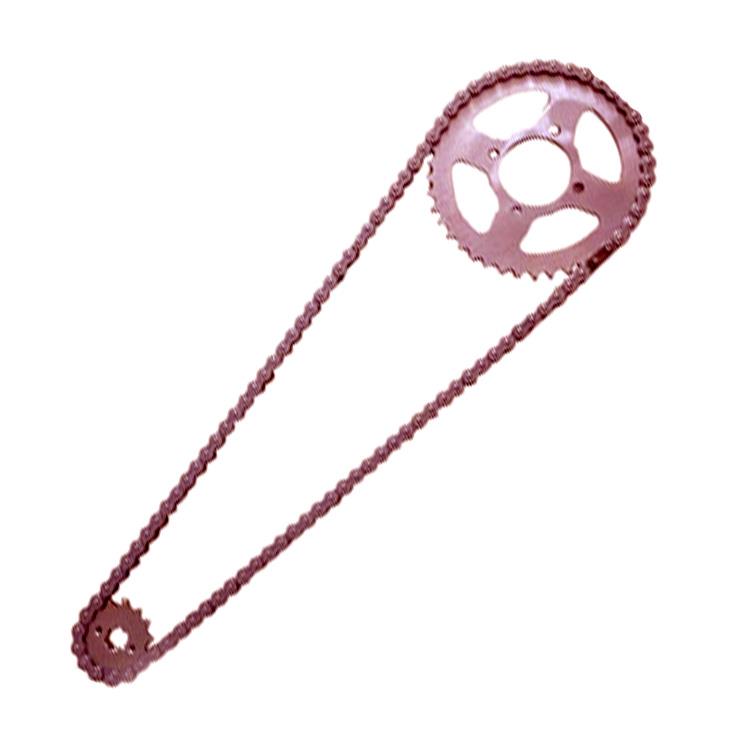

Motorcycle Chains And Sprockets

The sprockets work in tandem with their teeth engaging between the drive chain links. The front sprocket rotates at the same time as the engine's transmission output shaft, and the teeth pull the drive chain, in turn rotating the driven sprocket as it traverses. This system transfers the power from the engine to the rear wheel, moving the motorcycle forward.

Send Inquiry

Product Description

motorcycle chains and sprockets

Model	Chain No.	Pitch	Bush Type	Width	Pin diameter	Pin length	Roller diameter	Plate Thickness		Tensile	Weight
		Pitch	Bush Type	Width	Pin diameter	Pin length	Roller diameter	Inner	Outer	Tensile	Weight
		mm		mm	mm	mm	mm	mm	kN	kN	kg/m
Motorcycle Chain	520H	15.875	Curled	6.35	5.08	19.1	10.16	2.42	2.42	30.5	0.96
	520	15.875	Curled	6.35	5.08	17.5	10.16	2.03	2.03	26.5	0.89
	630	19.05	Curled	9.5	5.94	22.7	11.91	2.42	2.42	35	1.5
	530	15.875	Curled	9.53	5.08	20.7	10.16	2.03	2.03	26.5	1.09
	525	15.875	Curled	8	5.08	19.4	10.16	2.03	2.03	26.5	0.93
	420	12.7	Curled	6.35	3.96	14.7	7.77	1.5	1.5	15.6	0.55
	415	12.7	Curled	4.7	3.96	13	7.77	1.5	1.5	17.7	0.5
