Taper Lock Sprockets

Taper Lock Sprockets

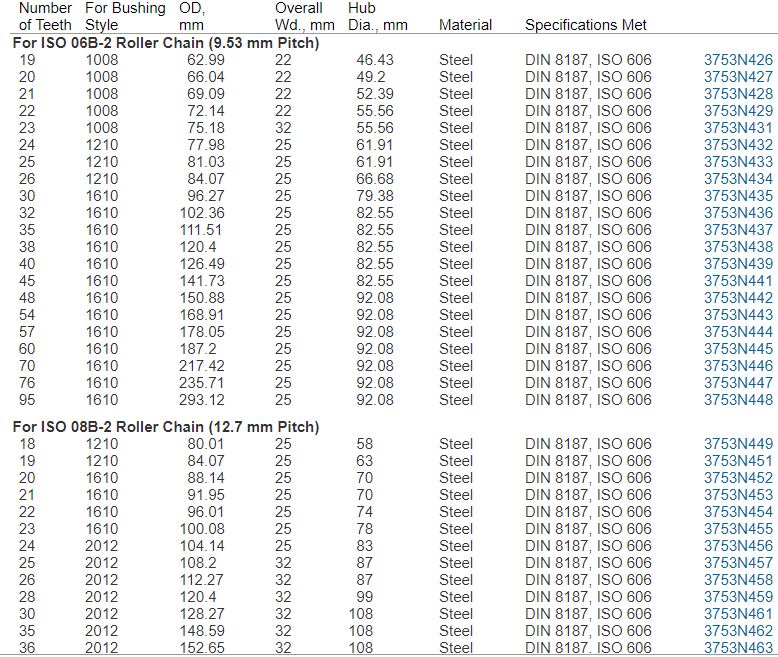

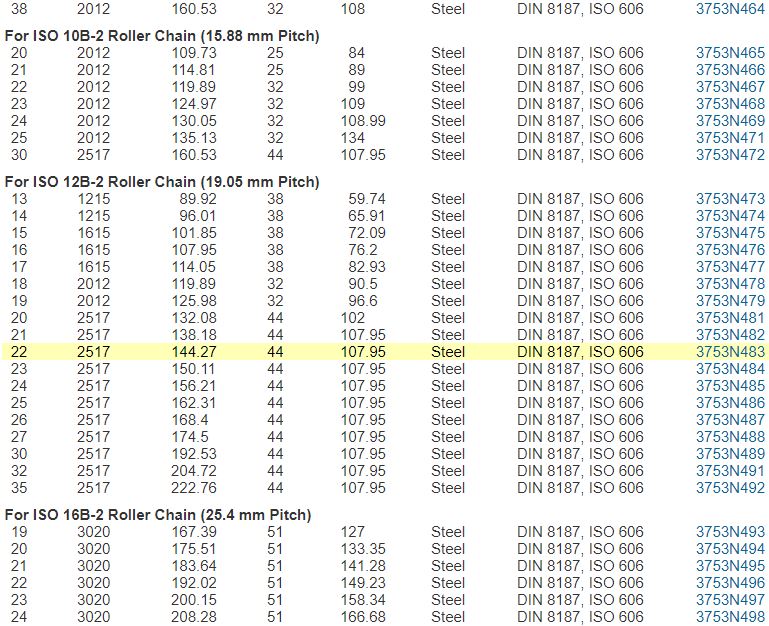

Our range of products include also taperlock sprockets. These sprockets are made in c45. Here following the range of taperlock sprockets available is showed, divided by pitch and chain.

3/8”x7/16” (ISO 06B-1; 06B-2; 06B-3)

1/2″x5/16” (ISO 08B-1; ISO 08B-2; ISO 08B-3)
5/8”x3/8” (ISO 10B-1; 10B-2; 10B-3)
3/4″x7/16” (ISO 12B1; 12B2; 12B-3)
1”x17,02 mm (ISO 16B-1; 16B-2; 16B-3)
1”1/4×3/4” (ISO 20B-1; 20B-2; 20B-3)

Taper Lock Sprocket For Double-Strand Roller Chain

Every family of product is available in different teeth numbers and fits a specific bush. The type of bushes varies according to the dimension and power transmission of sprocket and it is included within the following range.

1008
1108
1210
1215
1610
1615
2012
2517
3020
3030
3525
4030

“Taperlock sprockets “ are made in C45 according to UNI EN 10083-1 regulations. Surface treatments such as hardened teeth(45-55 HRC) can be also carried out on sprockets for a better wear resistance of the product.
