Weld Conveyor Sprocket For H78 WR78 81X 88K C188 Chain

Weld Conveyor Sprocket for H78 WR78 81X 88K C188 Chain

Send Inquiry

Product Description

Weld Conveyor Sprocket for H78 WR78 81X 88K C188 Chain

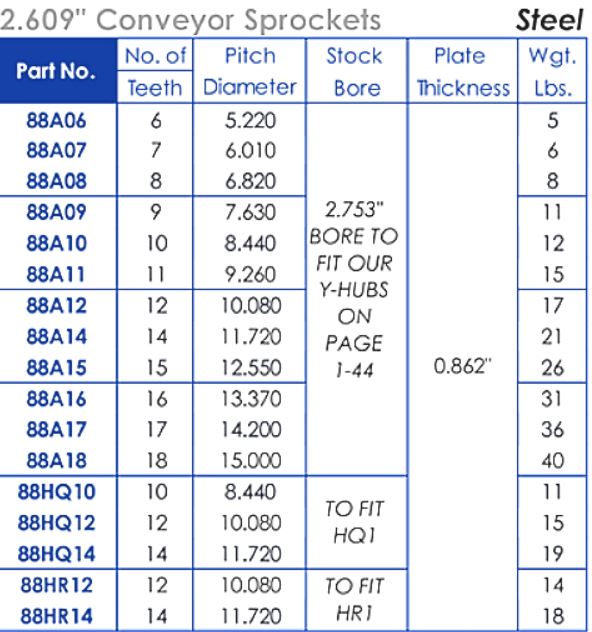

2.609" Pitch Conveyor Weld Sprockets

Fits Mill Chains H78, WR78, 81X, 88K, 88C, C118

These are Flat Plate Steel Weld Sprockets

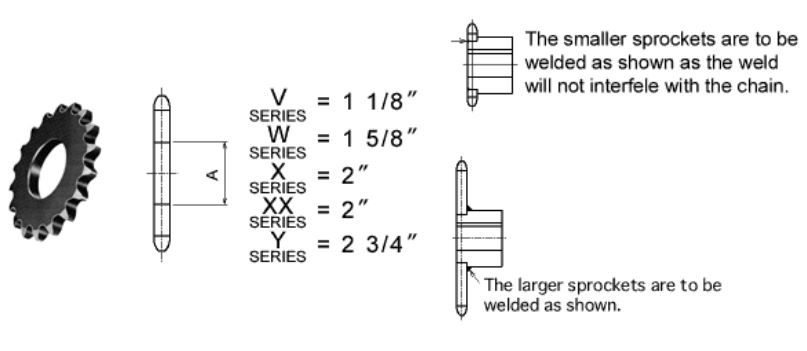

Choose the # Teeth you need and then pick a Your Y-Weld Hub Diameter for your shaft

2.753" Bore to fit Y-Hub

Also a 12 Tooth HQ Sprocket Available choose your Q1 Bushing with Weld on Hub for Larger Bores For 2" to 2-11/16" Shaft Size.

Weld Conveyor Sprocket For H78 WR78 81X 88K C188 Chain

NO. OF TEETH	ANSI-35	ANSI-41	ANSI-40	ANSI-50	ANSI-60	ANSI-80	ANSI-100
	-	DIN ISO Nr.085	DIN ISO Nr.08A	DIN ISO Nr.10A	DIN ISO Nr.12A	DIN ISO Nr.16A	DIN ISO Nr.20A
	-	DIN ISO Nr.085	DIN ISO Nr.08A	DIN ISO Nr.10A	DIN ISO Nr.12A	DIN ISO Nr.16A	DIN ISO Nr.20A
	Chain Pitch 3/8	Chain Pitch 1/2	Chain Pitch 1/2	Chain Pitch 5/8	Chain Pitch 3/4	Chain Pitch 1	Chain Pitch 1-1/4
	Chain Pitch 3/8	Chain Pitch 1/2	Chain Pitch 1/2	Chain Pitch 5/8	Chain Pitch 3/4	Chain Pitch 1	Chain Pitch 1-1/4
9	－	－	－	－	60 V 09	80 W 09	－
10	－	－	－	50 V 10	60 V 10	80 W 10	100 X 10
11	－	－	－	50 V 11	60 W 11	80 W 11	100 X 11
12	－	41 V 12	40 V 12	50 W 12	60 W 12	80 X 12	100 X 12
13	－	41 V 13	40 V 13	50 W 13	60 W 13	80 X 13	100 X 13
14	－	41 V 14	40 V 14	50 W 14	60 W 14	80 X 14	100 Y 14
15	35 V 15	41 V 15	40 V 15	50 W 15	60 X 15	80 X 15	100 Y 15
16	35 V 16	41 W 16	40 W 16	50 W 16	60 X 16	80 X 16	100 Y 16
17	35 V 17	41 W 17	40 W 17	50 X 17	60 X 17	80 X 17	100 Y 17
18	35 V 18	41 W 18	40 W 18	50 X 18	60 X 18	80 X 18	100 Y 18
19	35 V 19	41 W 19	40 W 19	50 X 19	60 X 19	80 X 19	100 Y 19
20	35 V 20	41 W 20	40 X 20	50 X 20	60 X 20	80 X 20	100 Y 20
21	35 V 21	41 W 21	40 X 21	50 X 21	60 X 21	80 X 21	100 Y 21
22	35 W 22	41 W 22	40 X 22	50 X 22	60 X 22	80 X 22	100 Y 22
23	35 W 23	41 W 23	40 X 23	50 X 23	60 X 23	80 X 23	100 Y 23
24	35 W 24	41 W 24	40 X 24	50 X 24	60 X 24	80 X 24	100 Y 24
25	35 W 25	41 W 25	40 X 25	50 X 25	60 X 25	80 X 25	100 Y 25
26	35 W 26	41 W 26	40 X 26	50 X 26	60 X 26	80 X 26	100 Y 26
27	35 W 27	41 W 27	40 X 27	50 X 27	60 X 27	80 X 27	－
28	35 W 28	41 W 28	40 X 28	50 X 28	60 X 28	80 X 28	100 Y 28
29	35 W 29	41 W 29	40 X 29	50 X 29	60 X 29	80 X 29	－
30	35 W 30	41 W 30	40 X 30	50 X 30	60 X 30	80 X 30	100 Y 30
31	35 W 31	41 W 31	40 X 31	50 X 31	60 X 31	－	－
32	35 W 32	41 W 32	40 X 32	50 X 32	60 X 32	80 X 32	100 Y 32
33	35 W 33	41 W 33	40 X 33	50 X 33	60 X 33	80 X 33	－
34	35 W 34	41 W 34	40 X 34	50 X 34	60 X 34	80 X 34	－
35	35 W 35	41 W 35	40 X 35	50 X 35	60 X 35	80 X 35	100 Y 35
36	35 W 36	41 W 36	40 X 36	50 X 36	60 X 36	80 X 36	100 Y 36
37	35 W 37	41 W 37	40 X 37	50 X 37	60 X 37	－	－
38	35 W 38	41 W 38	40 X 38	50 X 38	60 X 38	－	－
39	35 W 39	41 W 39	40 X 39	50 X 39	60 X 39	－	－
40	35 W 40	41 W 40	40 X 40	50 X 40	60 X 40	80 X 40	－
42	35 W 42	41 W 42	40 X 42	50 X 42	60 X 42	－	－
43	35 W 43	41 W 43	40 X 43	50 X 43	60 X 43	－	－
44	35 W 44	41 W 44	40 X 44	50 X 44	60 X 44	－	－
45	35 W 45	41 W 45	40 X 45	50 X 45	60 X 45	80 X 45	－
48	35 W 48	41 W 48	40 X 48	50 X 48	60 X 48	80 X 48	－
50	35 W 50	41 W 50	40 X 50	50 X 50	60 X 50	－	－
54	35 W 54	41 W 54	40 X 54	50 X 54	60 X 54	－	－
60	35 W 60	41 W 60	40 X 60	50 X 60	60 X 60	80 X 60	－
70	35 W 70	41 W 70	40 X 70	50 X 70	60 X 70	－	－
72	35 W 72	41 W 72	40 X 72	50 X 72	60 X 72	－	－
80	35 W 80	41 W 80	40 X 80	50 X 80	60 X 80	－	－
84	35 W 84	41 W 84	40 X 84	50 X 84	60 X 84	－	－
96	35 W 96	41 W 96	40 X 96	50 X 96	60 X 96	－	－
