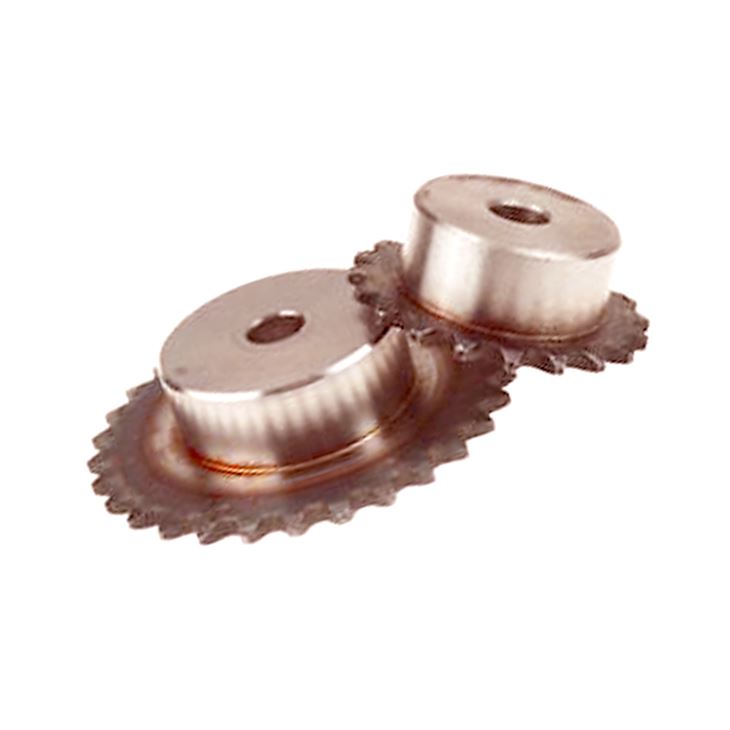

We stock a full line of ANSI single strand 304-grade stainless steel sprockets both as A-Plate style and B-Hub style. We keep these on the shelf as standard stock bores. However, we can supply sprockets with finished bores thanks to our fast-reaction in house industrial machine shop. Typically our sprockets are manufactured out of 304 grade stainless steel, but 316 as well as a few other grades are available upon request.

Specification: Material: 45 # steel Sprocket outer diameter: 28.00mm Pitch: 6.35mm Step diameter: 16mm Total thickness: 14.5 Bore: rough machining

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420 2. Steel:C45(K1045), C46(K1046),C20 3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40) 4. Bronze: C51000, C52100, C54400, etc 5. Iron: 1213, 12L14,1215 6. Aluminum: Al6061, Al6063 7.OEM according to your request

Gear Motions manufactures sprockets from .5” to 72” in diameter with a pitch range from 0.125 to 3. Please note that although we manufacture sprockets, we do not manufacture or sell the associated chains. Whether you know what you need, or you require some expert advice, engineers at Gear Motions are ready to assist you. They will review your gear system to find high-precision sprocket solutions to improve your bottom line.

Not the engine sprocket, but the next one on the upper inner chain loop. The second Small sprocket in the drive system. 13 Tooth, 06b pitch. Number 32 in image

Our clients can avail from us, a pristine array of Duplex Chain Sprocket. It is used in engineering and other machinery either to transmit rotary motion between two shafts where gears are unsuitable or to impart linear motion to a track, tape etc.
