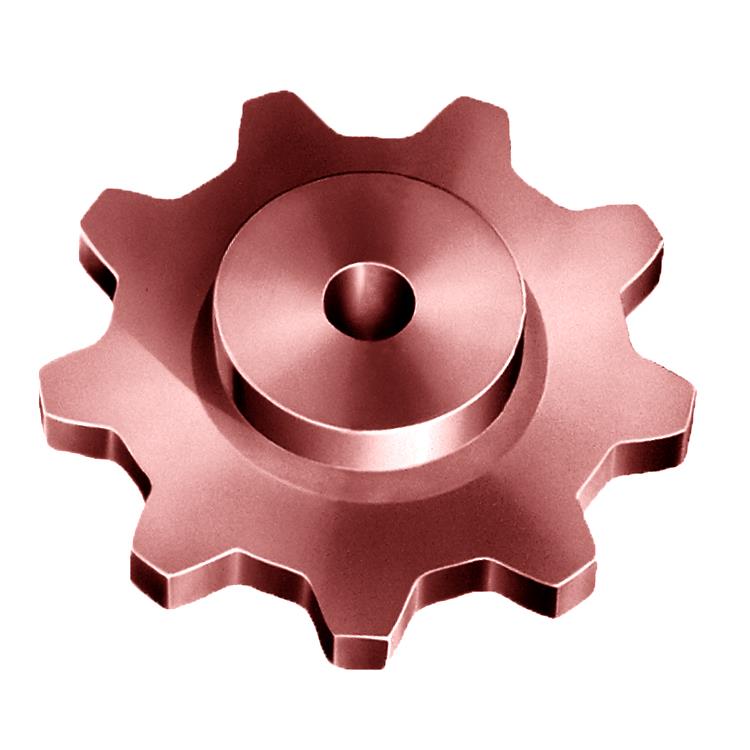

Weld Finish Sprockets

ick a plate sproket and a finished bore hub you need.By welding,you make a B type finished bore sprocket quick and easy in emergency use.It's economy and save youe time. A few stock of plate sprocket and hub can serve you a variety of sprocket sizes.Unique and convenience in your repair and replacement need.

Send Inquiry

Product Description

NO. OF TEETH	ANSI-35	ANSI-41	ANSI-40	ANSI-50	ANSI-60	ANSI-80	ANSI-100
	-	DIN ISO Nr.085	DIN ISO Nr.08A	DIN ISO Nr.10A	DIN ISO Nr.12A	DIN ISO Nr.16A	DIN ISO Nr.20A
	-	DIN ISO Nr.085	DIN ISO Nr.08A	DIN ISO Nr.10A	DIN ISO Nr.12A	DIN ISO Nr.16A	DIN ISO Nr.20A
	Chain Pitch 3/8	Chain Pitch 1/2	Chain Pitch 1/2	Chain Pitch 5/8	Chain Pitch 3/4	Chain Pitch 1	Chain Pitch 1-1/4
	Chain Pitch 3/8	Chain Pitch 1/2	Chain Pitch 1/2	Chain Pitch 5/8	Chain Pitch 3/4	Chain Pitch 1	Chain Pitch 1-1/4
9	－	－	－	－	60 V 09	80 W 09	－
10	－	－	－	50 V 10	60 V 10	80 W 10	100 X 10
11	－	－	－	50 V 11	60 W 11	80 W 11	100 X 11
12	－	41 V 12	40 V 12	50 W 12	60 W 12	80 X 12	100 X 12
13	－	41 V 13	40 V 13	50 W 13	60 W 13	80 X 13	100 X 13
14	－	41 V 14	40 V 14	50 W 14	60 W 14	80 X 14	100 Y 14
15	35 V 15	41 V 15	40 V 15	50 W 15	60 X 15	80 X 15	100 Y 15
16	35 V 16	41 W 16	40 W 16	50 W 16	60 X 16	80 X 16	100 Y 16
17	35 V 17	41 W 17	40 W 17	50 X 17	60 X 17	80 X 17	100 Y 17
18	35 V 18	41 W 18	40 W 18	50 X 18	60 X 18	80 X 18	100 Y 18
19	35 V 19	41 W 19	40 W 19	50 X 19	60 X 19	80 X 19	100 Y 19
20	35 V 20	41 W 20	40 X 20	50 X 20	60 X 20	80 X 20	100 Y 20
21	35 V 21	41 W 21	40 X 21	50 X 21	60 X 21	80 X 21	100 Y 21
22	35 W 22	41 W 22	40 X 22	50 X 22	60 X 22	80 X 22	100 Y 22
23	35 W 23	41 W 23	40 X 23	50 X 23	60 X 23	80 X 23	100 Y 23
24	35 W 24	41 W 24	40 X 24	50 X 24	60 X 24	80 X 24	100 Y 24
25	35 W 25	41 W 25	40 X 25	50 X 25	60 X 25	80 X 25	100 Y 25
26	35 W 26	41 W 26	40 X 26	50 X 26	60 X 26	80 X 26	100 Y 26
27	35 W 27	41 W 27	40 X 27	50 X 27	60 X 27	80 X 27	－
28	35 W 28	41 W 28	40 X 28	50 X 28	60 X 28	80 X 28	100 Y 28
29	35 W 29	41 W 29	40 X 29	50 X 29	60 X 29	80 X 29	－
30	35 W 30	41 W 30	40 X 30	50 X 30	60 X 30	80 X 30	100 Y 30
31	35 W 31	41 W 31	40 X 31	50 X 31	60 X 31	－	－
32	35 W 32	41 W 32	40 X 32	50 X 32	60 X 32	80 X 32	100 Y 32
33	35 W 33	41 W 33	40 X 33	50 X 33	60 X 33	80 X 33	－
34	35 W 34	41 W 34	40 X 34	50 X 34	60 X 34	80 X 34	－
35	35 W 35	41 W 35	40 X 35	50 X 35	60 X 35	80 X 35	100 Y 35
36	35 W 36	41 W 36	40 X 36	50 X 36	60 X 36	80 X 36	100 Y 36
37	35 W 37	41 W 37	40 X 37	50 X 37	60 X 37	－	－
38	35 W 38	41 W 38	40 X 38	50 X 38	60 X 38	－	－
39	35 W 39	41 W 39	40 X 39	50 X 39	60 X 39	－	－
40	35 W 40	41 W 40	40 X 40	50 X 40	60 X 40	80 X 40	－
42	35 W 42	41 W 42	40 X 42	50 X 42	60 X 42	－	－
43	35 W 43	41 W 43	40 X 43	50 X 43	60 X 43	－	－
44	35 W 44	41 W 44	40 X 44	50 X 44	60 X 44	－	－
45	35 W 45	41 W 45	40 X 45	50 X 45	60 X 45	80 X 45	－
48	35 W 48	41 W 48	40 X 48	50 X 48	60 X 48	80 X 48	－
50	35 W 50	41 W 50	40 X 50	50 X 50	60 X 50	－	－
54	35 W 54	41 W 54	40 X 54	50 X 54	60 X 54	－	－
60	35 W 60	41 W 60	40 X 60	50 X 60	60 X 60	80 X 60	－
70	35 W 70	41 W 70	40 X 70	50 X 70	60 X 70	－	－
72	35 W 72	41 W 72	40 X 72	50 X 72	60 X 72	－	－
80	35 W 80	41 W 80	40 X 80	50 X 80	60 X 80	－	－
84	35 W 84	41 W 84	40 X 84	50 X 84	60 X 84	－	－
96	35 W 96	41 W 96	40 X 96	50 X 96	60 X 96	－	－
